Operating System Tutorial
Operating
System Tutorial provides the basic and advanced concepts of operating system .
Our Operating system tutorial is designed for beginners, professionals and GATE
aspirants. We have designed this tutorial after the completion of a deep
research about every concept.
The content is described in detailed manner and has the
ability to answer most of your queries. The tutorial also contains the
numerical examples based on previous year GATE questions which will help you to
address the problems in a practical manner.
Operating System can be defined as an interface between
user and the hardware. It provides an environment to the user so that, the user
can perform its task in convenient and efficient way.
The Operating System Tutorial is divided into various parts
based on its functions such as Process Management, Process Synchronization,
Deadlocks and File Management.
Operating System Definition and Function
In the Computer System (comprises of Hardware and
software), Hardware can only understand machine code (in the form of 0 and 1)
which doesn't make any sense to a naive user.
We need a system which can act as an intermediary and
manage all the processes and resources present in the system.
An Operating System can be defined as an interface between user and hardware. It
is responsible
for the
execution of all the processes,
Resource Allocation, CPU management, File
Management and many other tasks.
The purpose of an operating system is to provide an
environment in which a user can execute programs in convenient and efficient
manner.
Structure of a Computer System
A Computer System consists of:
o Users (people who are using the computer)
o Application Programs (Compilers, Databases, Games, Video
player, Browsers, etc.)
o System Programs (Shells, Editors, Compilers, etc.)
o Operating System ( A special program which acts as an
interface between user and hardware ) o Hardware ( CPU, Disks, Memory, etc)
What does an
Operating system do?
1.
Process Management
2.
Device Management
3.
Memory Management
4.
CPU Scheduling
5.
File Management
6.
Security
Types of Operating Systems (OS)
An operating system is a well-organized collection of programs that manages the computer hardware. It is a type of system software that is responsible for the smooth functioning of the computer system.
Batch Operating System
In the 1970s, Batch processing was very popular. In this
technique, similar types of jobs were batched together and executed in time.
People were used to having a single computer which was called a mainframe.
In Batch operating system, access is given to more than one
person; they submit their respective jobs to the system for the execution.
The system put all of the jobs in a queue on the basis of
first come first serve and then executes the jobs one by one. The users collect
their respective output when all the jobs get executed.
The purpose of this operating system was mainly to transfer control from one job to another as soon as the job was completed. It contained a small set of programs called the resident monitor that always resided in one part of the main memory. The remaining part is used for servicing jobs.
Advantages of Batch OS
o The use of a resident
monitor improves computer efficiency as it eliminates CPU time between two
jobs.
Disadvantages of Batch OS
Batch processing suffers from starvation.
Zero Interaction between the User and the Hardware.
For Example:
There are five jobs J1, J2, J3, J4, and J5, present in the
batch. If the execution time of J1 is very high, then the other four jobs will
never be executed, or they will have to wait for a very long time. Hence the
other processes get starved.
2. Not Interactive
Batch Processing is not suitable for jobs that are
dependent on the user's input. If a job requires the input of two numbers from
the console, then it will never get it in the batch processing scenario since
the user is not present at the time of execution.
Multiprogramming Operating System
Multiprogramming is an extension to batch processing where
the CPU is always kept busy. Each process needs two types of system time: CPU
time and IO time.
In a multiprogramming environment, when a process does its I/O, The CPU can start the execution of other processes. Therefore, multiprogramming improves the efficiency of the system.
Advantages of Multiprogramming OS
o Throughout the system, it increased as the CPU
always had one program to execute. o Response time can also be reduced.
Disadvantages of Multiprogramming OS
o Multiprogramming systems
provide an environment in which various systems resources are used efficiently,
but they do not provide any user interaction with the computer system.

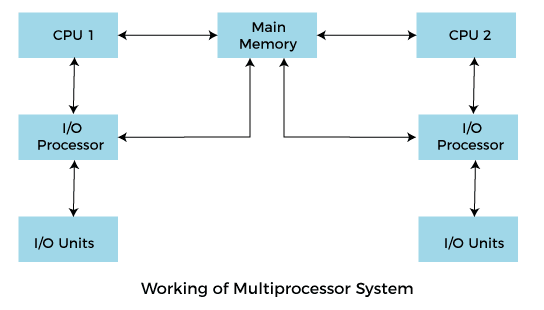

Multiprocessing Operating System
In Multiprocessing, Parallel computing is achieved. There are more than one processors present in the system which can execute more than one process at the same time. This will increase the throughput of the system.
In Multiprocessing, Parallel computing is achieved. More than one processor present in the system can execute more than one process simultaneously, which will increase the throughput of the system.
Advantages of Multiprocessing operating system:
o Increased reliability: Due to the multiprocessing system, processing
tasks can be distributed among several processors. This increases reliability
as if one processor fails, the task can be given to another processor for
completion. o Increased throughout: As several processors increase,
more work can be done in less.
Disadvantages of Multiprocessing operating System
o Multiprocessing operating
system is more complex and sophisticated as it takes care of multiple CPUs
simultaneously.
Multitasking Operating System
The multitasking operating system is a logical extension of
a multiprogramming system that enables multiple
programs simultaneously. It allows a user to perform more than one computer
task at the same time.
Advantages of Multitasking operating system
o This operating system is more suited to
supporting multiple users simultaneously. o The multitasking operating systems have
well-defined memory management.
Disadvantages of Multitasking operating system
o The multiple processors
are busier at the same time to complete any task in a multitasking environment,
so the CPU generates more heat.
Network Operating System
An Operating system, which includes software and associated
protocols to communicate with other computers via a network conveniently and
cost-effectively, is called Network Operating System.
Advantages of Network Operating System
o In this type of operating
system, network traffic reduces due to the division between clients and the
server.
o This type of system is
less expensive to set up and maintain.
Disadvantages of Network Operating System
o In this type of operating
system, the failure of any node in a system affects the whole system. o Security and performance
are important issues. So trained network administrators are required for
network administration.
Real Time Operating System
In Real-Time Systems, each job carries a certain deadline
within which the job is supposed to be completed, otherwise, the huge loss will
be there, or even if the result is produced, it will be completely useless.
The Application of a Real-Time system exists in the case of
military applications, if you want to drop a missile, then the missile is
supposed to be dropped with a certain precision.
Advantages of Real-time operating system:
o Easy to layout, develop
and execute real-time applications under the real-time operating system.
o In a Real-time operating
system, the maximum utilization of devices and systems.
Disadvantages of Real-time operating system:
o Real-time operating
systems are very costly to develop.
o Real-time operating
systems are very complex and can consume critical CPU cycles.
Time-Sharing Operating System
In the Time Sharing operating system, computer resources
are allocated in a timedependent fashion to several programs simultaneously.
Thus it helps to provide a large number of user's direct access to the main
computer. It is a logical extension of multiprogramming. In time-sharing, the
CPU is switched among multiple programs given by different users on a scheduled
basis.
A time-sharing operating system allows many users to be
served simultaneously, so sophisticated CPU scheduling schemes and Input/output
management are required.
Time-sharing operating systems are very difficult and
expensive to build.
Advantages of Time Sharing Operating System
o The time-sharing
operating system provides effective utilization and sharing of resources.
o This system reduces CPU
idle and response time.
Disadvantages of Time Sharing Operating System
o Data transmission rates
are very high in comparison to other methods.
o Security and integrity of
user programs loaded in memory and data need to be maintained as many users
access the system at the same time.
Distributed Operating System
The Distributed Operating system is not installed on a
single machine, it is divided into parts, and these parts are loaded on
different machines. A part of the distributed Operating system is installed on
each machine to make their communication possible. Distributed Operating
systems are much more complex, large, and sophisticated than Network operating
systems because they also have to take care of varying networking protocols.
Advantages of Distributed Operating System
o The distributed operating system provides sharing
of resources. o This type of system is fault-tolerant.
Disadvantages of Distributed Operating System
o Protocol overhead can dominate computation cost.
